Fuel Filters

Fuel Dispenser Filters

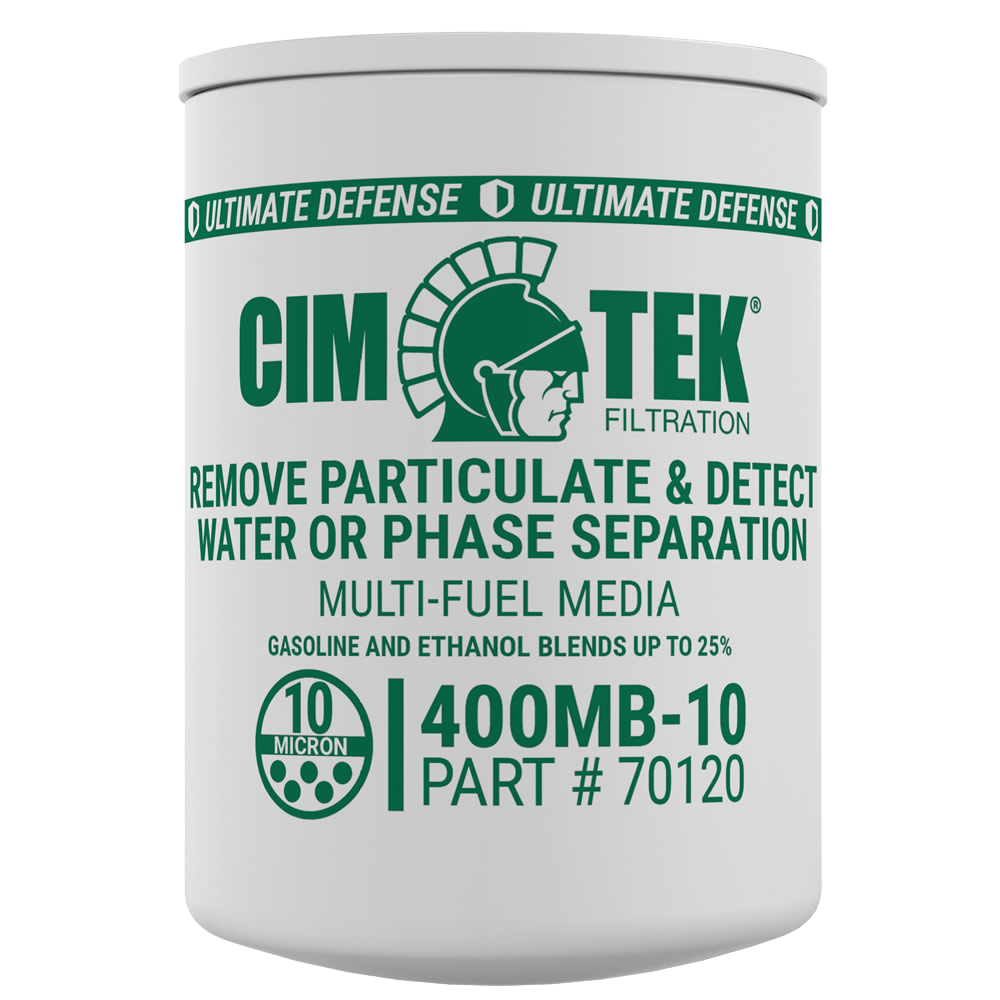

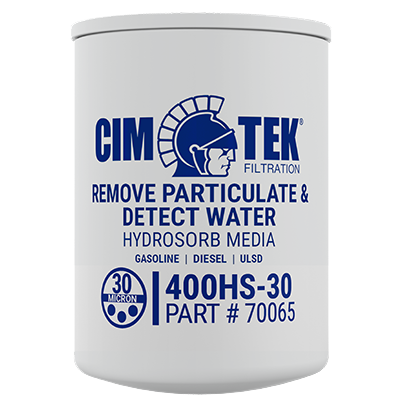

When it comes to fuel dispensers, Cim-Tek® offers a wide selection of filters for various filtration applications—from Particulate and Water Detection to Detection of Phase Separation. Furthermore, Cim-Tek offers Cellulose, Microglass, and Hydroglass media with a micron range of 2μm-30μm. Most filters are recognized by Underwriters Laboratories (UL®) for use with service station pumps and dispensers.

What to consider when choosing a media:

Fuel type:
Each fuel type has distinct properties that influence its filtration requirements.

Water contamination: Water is the largest threat to your fuel supply. We recommend using waterdetecting medias in almost every situation.

Performance: Some of our medias provide more protection than others. Look for the Ultimate Defense label (or the shield) to ensure you are getting maximum performance from your filter.

Spin-On Filters

PetroClear provides fuel-dispenser filters and filtration accessories for dispensing petroleum, ethanol, methanol and biodiesel blends at retail and commercial fuel sites. The PetroClear line of filters includes high-flow, extended life, phase separation and more.

Today, PetroClear products are hard-at-work behind the scenes (and behind the sheet metal) at convenience stores, hypermarkets, service stations, unattended fueling facilities, marina fueling facilities, and fleet fueling facilities including municipal, hospital, school, rental car, farm and military facilities.

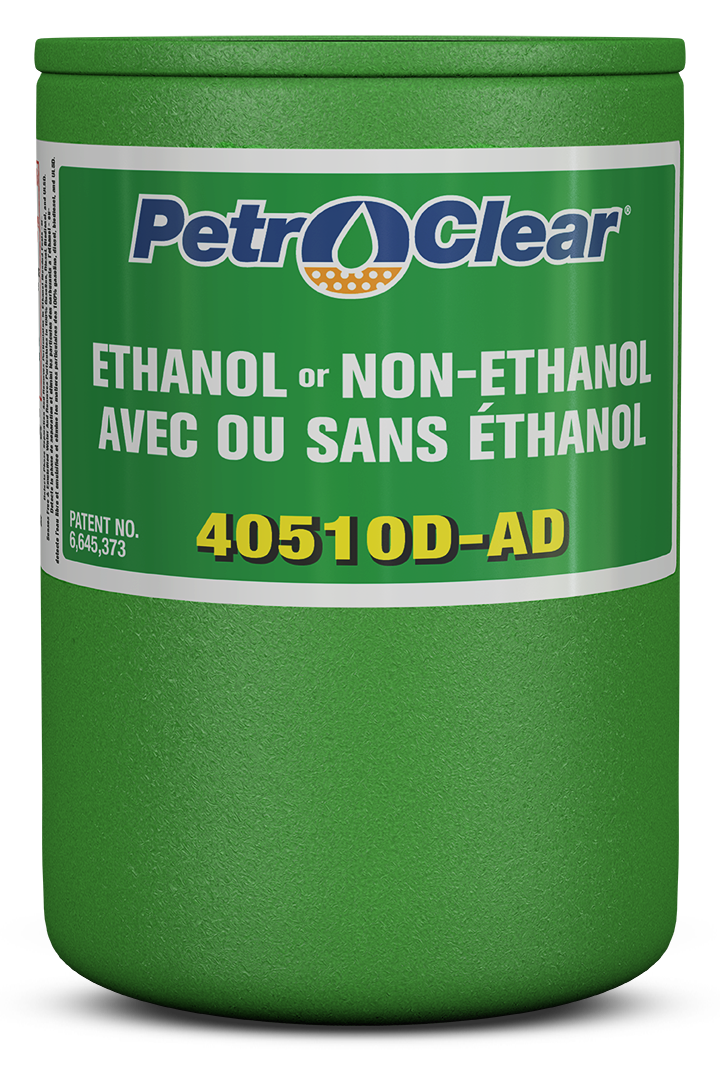

GREEN FILTERS
Retail fuel sites trust PetroClear Phase Separation Detection, Water Sensing and Particulate Removing Spin-On Dispenser Filters to protect vehicles from damaging contaminants found in fuel. These filters are compatible with ethanol blends, neat gasoline, diesel and biodiesel.

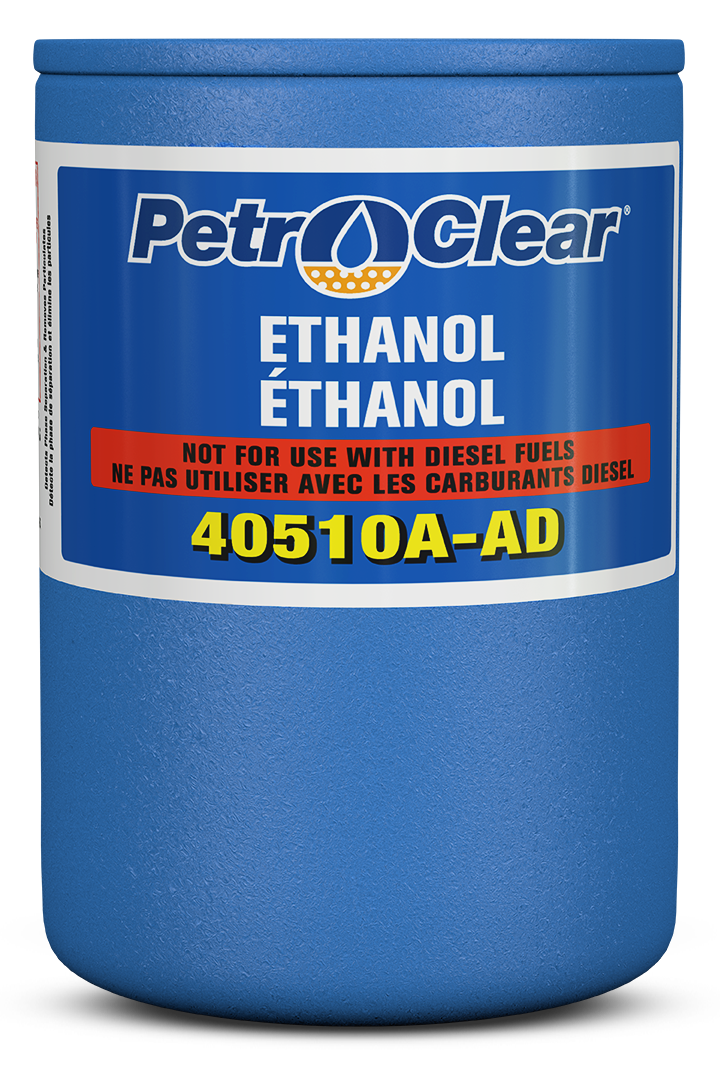

BLUE FILTERS
Retail fuel and high-volume fueling sites trust PetroClear Phase Separation Detection and Particulate Removing Spin-On Dispenser Filters to prevent ethanol blends that have experienced phase separation from being pumped into vehicles and causing serious equipment damage. The filters also capture particulate that can be destructive to engine components.

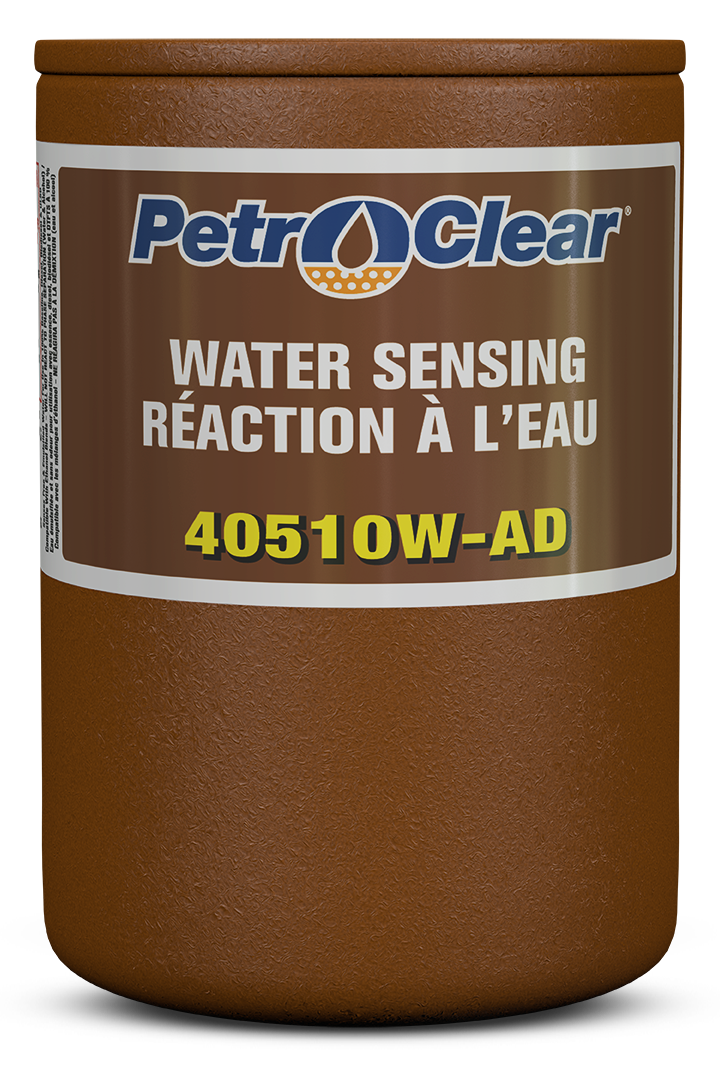

BROWN FILTERS
Retail fuel, high-volume fueling sites, agricultural operations, marinas and more trust PetroClear Water Sensing and Particulate Removing Spin-On Dispenser Filters to capture equipment-damaging water and particulate in fuel before it is pumped into a vehicle.

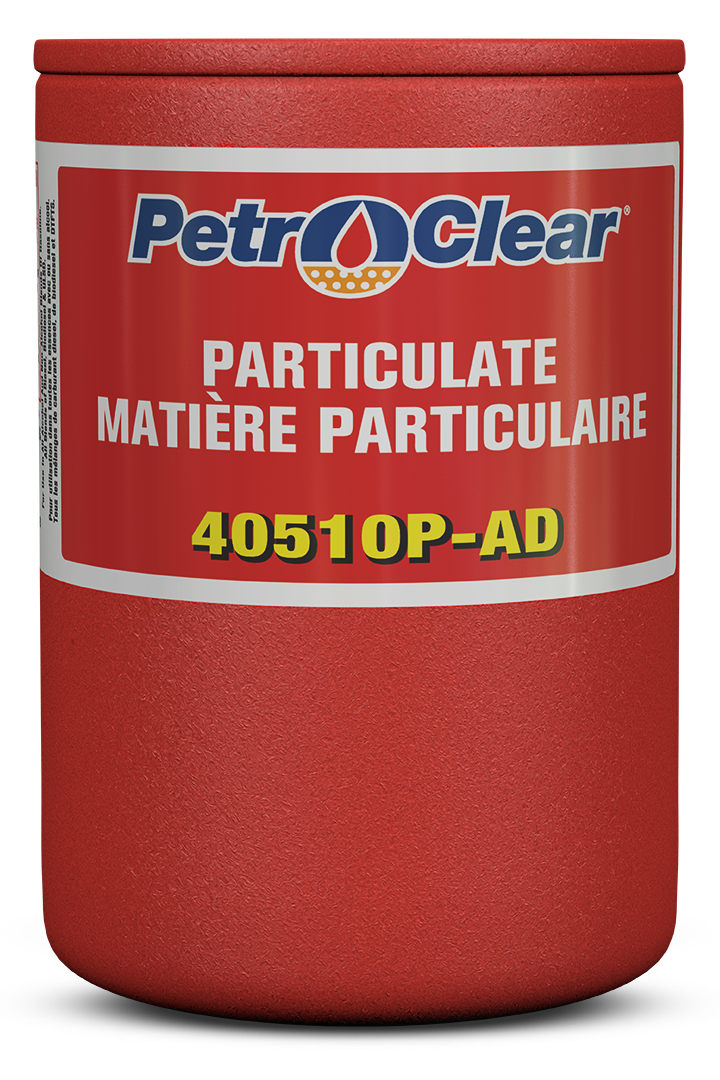

RED FILTERS
Retail fuel sites trust PetroClear Phase Separation Detection, Water Sensing and Particulate Removing Spin-On Dispenser Filters to protect vehicles from damaging contaminants found in fuel. These filters are compatible with ethanol blends, neat gasoline, diesel and biodiesel.

Aviation Filitration

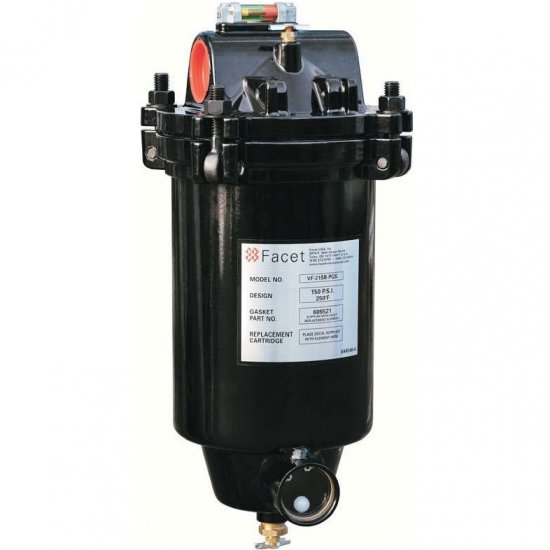

The Facet VF-21SB/22SB, when configured as a filter water separator, is an economical, compact housing designed to remove water and solids from aviation fuels. Both interior and exterior surfaces of the carbon steel body are epoxy coated to protect against corrosion. This sturdy, single cartridge housing is easy to maintain and requires only 2″ (51 mm) base clearance for cartridge change out.

Depending on the type of cartridge selected, the housing may be used as a filter, absorptive filter, filter separator or air/gas entrainment separator to remove solids, water, mist or hydrocarbon carryover.

COMMON APPLICATIONS

  • Avgas
  • Gasoline
  • Diesel
  • Bio-Diesel
  • Lube Oil
  • Insulating Oil
  • Hydraulic Oil
  • Transformer Oil
  • Solvents
  • Compressed Air
  • LNG

STANDARD HOUSING DESIGN

  • Carbon steel body
  • Aluminum head
  • Epoxy coated internally and externally
  • 150 psi (10.5 kg/cm2) design pressure
  • Swing bolt quick open closure
  • Buna-N o-ring closure gasket
  • Vent and drain connections w/brass petcocks provided
  • 1-1/2 NPT inlet and outlet connections
